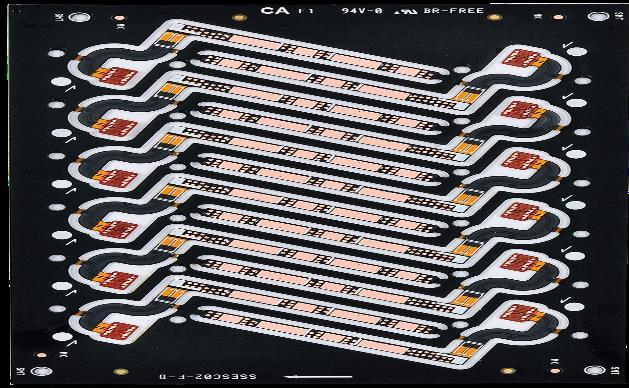

The quality control of printed boards is mainly aimed at the design, processing and inspection of printed boards, as well as monitoring and measurement.
1. Quality control at design stage
The quality management work at the design stage includes the following points.
(1) The person in charge of the project reviews the design documents of the printed circuit board and performs relevant review procedures to ensure that the design documents are valid. The printed circuit board made according to this document can meet the function and performance requirements of the equipment, otherwise the design is better and it is also a pile of waste paper.
(2) The person in charge and technical personnel of the project should check the process requirements for the production of printed circuit boards to ensure the manufacturability of the printed circuit boards. The technical requirements can be simply and directly posted on the design drawing, and the content is written separately. Whether the process requirements are simple or complex, they must indicate correct, clear and tidy process requirements. The reviewed technical requirements must meet the production technology level at that time, economical, cost-effective, and convenient for subsequent assembly, adjustment, testing and other projects.
(3) Standardizers review the design of printed circuit board test points, structural forms, external dimensions, printed circuit layout, pads, vias, text, etc. to ensure the testability and standardization of printed circuit boards and try to meet national standards, Requirements of national military standards and industry standards.
2. Quality management in production and processing
Production and processing quality management includes the following points.
(1) The quality department cooperates with the procurement department to conduct on-site investigations and certify the qualifications and production capacity of printed circuit board manufacturers to ensure the ability of manufacturers to complete production tasks.
(2) The designer reexamines the manufacturer's production drawings; The design of printed circuit boards is often unsuccessful and requires multiple revisions. The manufacturer has multiple versions of the processing drawings. It is necessary to reconfirm the final processing drawings and confirm that the processed printed circuit board meets the requirements of the final version.
(3) should focus on the important processes in the production of printed circuit boards. The quality has a great impact on the performance and reliability of the printed circuit board, and quality management must be strengthened. Supervise and review important process rules such as etching, metallization and other processes established by manufacturers to ensure that printed circuits and pads are free of burrs, gaps, bridge defects, and free of nodules and voids. "Lamination" of multilayer printed circuit boards should also focus on quality control to ensure the thickness, adhesive strength and positioning accuracy of printed circuit boards. High-frequency boards and microstrip boards usually require gold plating, and a professional gold-plating technical guide must be developed to ensure the thickness and purity of the plating layer.

3. Quality control at the inspection stage
The quality control work in the inspection stage is strictly in accordance with the inspection basis, using visual or professional tooling and instruments to monitor and measure the printed circuit board, and keep records. If there are special requirements, detailed rules for professional inspection should be formulated.
